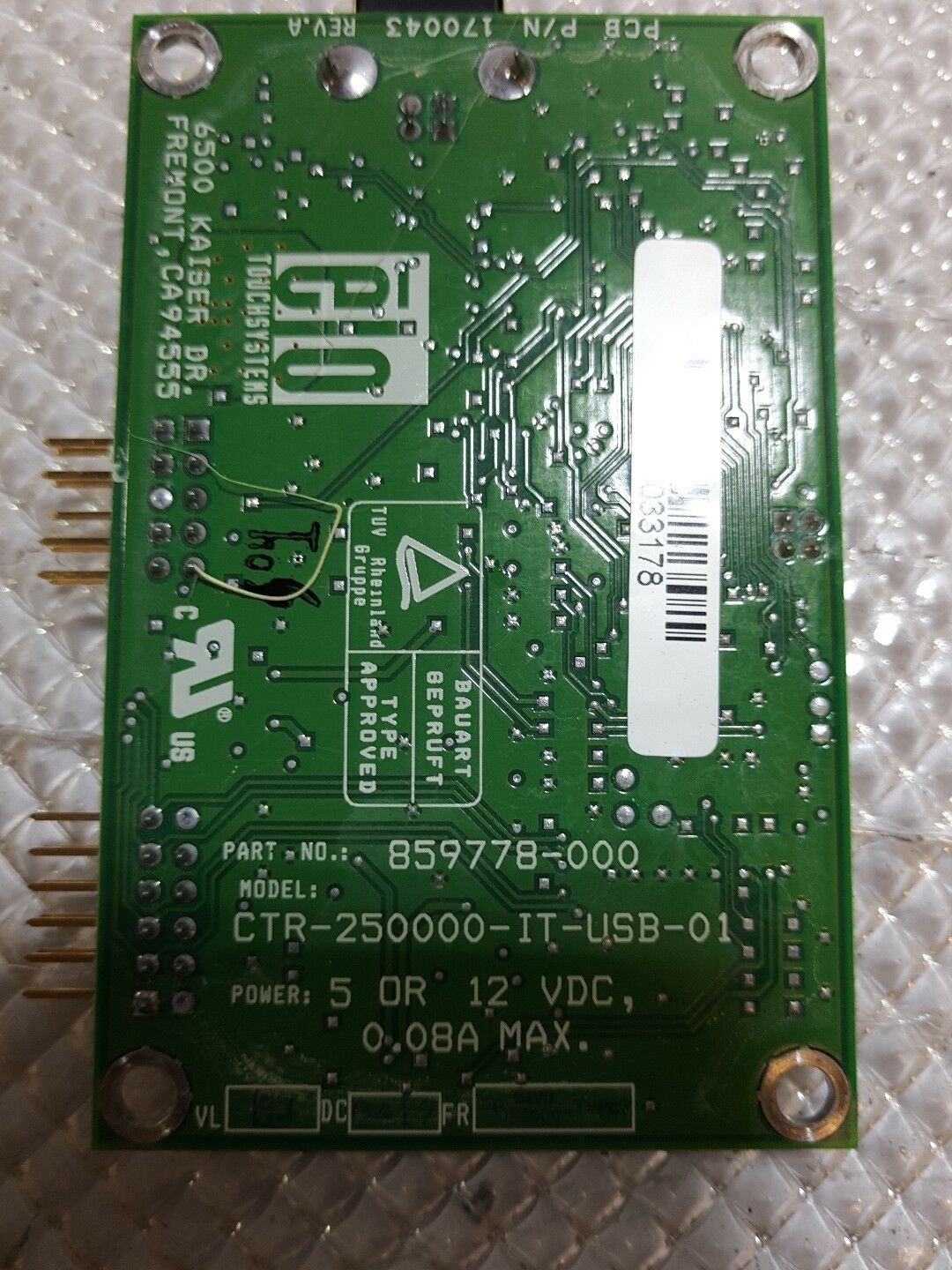

Product Description
- Part Number(s) 859778-000
- Technology - 5-Wire Resistive (AccuTouch®)
- Dimensions - 2.36" x 3.51" x 0.61" / 59.94 mm x 89.03 mm x 15.44 mm
- Interface - USB (Full Speed)
- Resolution - 4096x4096, size independent, 255 levels of Z (pressure)
- Conversion Time - Approximately 10.4 ms per coordinate set
- Power - 50 mA, typical at +5 VDC
- Average dissipation - 0.25 W
- Input Voltage - +5 VDC, nominal (+4.75V to +5.25V) or +12VDC, nominal (+10.8V to +13.2V)
- Power Input - +5 VDC, nominal (+4.75V to +5.25V) or +12VDC, nominal (+10.8V to +13.2V)
- Reliability - MTBF greater than 345,000 hours per MIL-HDBK-217-F2 using the parts stress calculation method for the ground benign environment with an ambient temperature of 25°C
- Construction - Four-layer surface-mount design with internal ground plane for EMI suppression
- Flammability - The printed circuit board substrate is rated 94V0. All plastic components, such a headers and connectors, are also rated 94V0.
