1,package included:

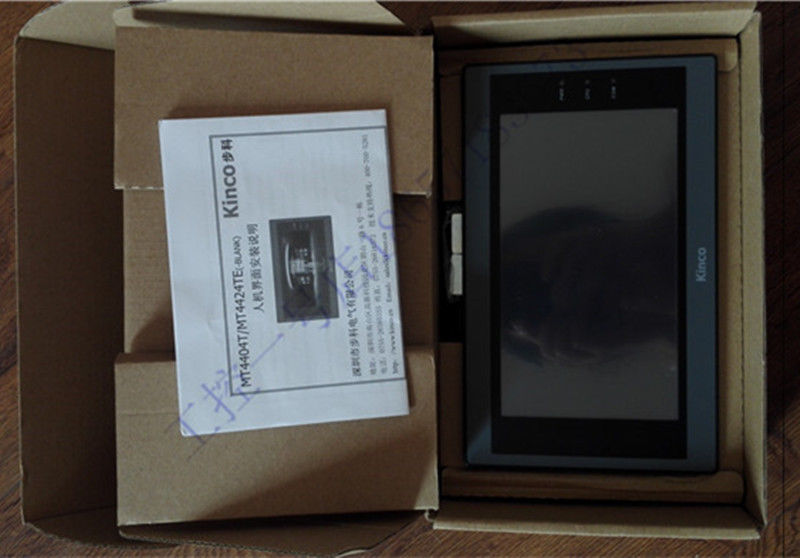

MT4424TE human machine interface HMI touch screen newin box;
programming cable(Only offer it free when you askfor after order. Not ship it default. The communication cable is not included,if you need, please contact us and inquiry it)
The software is free(we can send it by email if youcan’t download it by yourself)
2, KincoMT4424TE HMI
- Display：7″16:9 TFT
- Color：65536 Colors
- Memory：128M FLASH + 64M SDRAM
3, Performance specification
| Display | 7" TFT |
| Resolution | 800*480 |
| Color | 65536 |
| Backlight | LED |
| Brightness | 300cd/m2 |
| Backlight life | 50000 hours |
| Touch Panel | 4-wire precision resistance network |
| Processor | 32-bit 800MHz RISC |
| Memory | 128M FLASH + 64M SDRAM |
| Expandable memory | 1USB Host, 1 SD Card |
| Recipe memory & RTC | 512KB + RTC |
| Printer port | USB Host/Slave/Serial port |
| Ethernet | Support |
| Program download | USB /Serial port/Ethernet port |

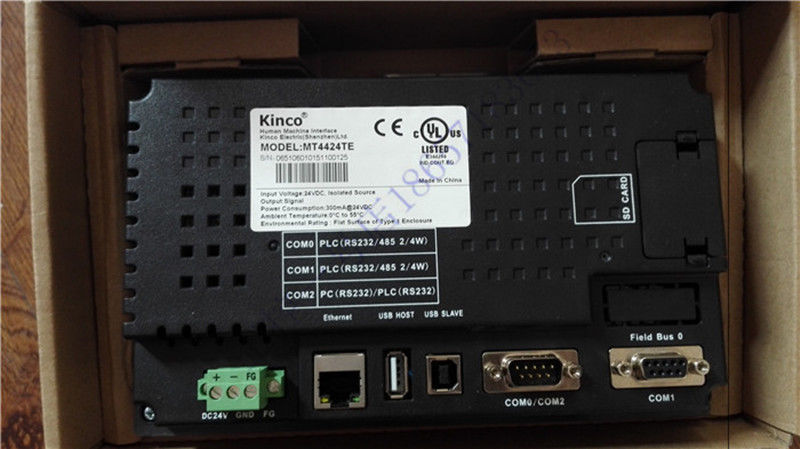

| COM port | COM0:PLC RS232/PLC RS485-2/4, COM1:PLC RS232/PLC RS485-2/4, COM2:PC/PLC RS232 |
