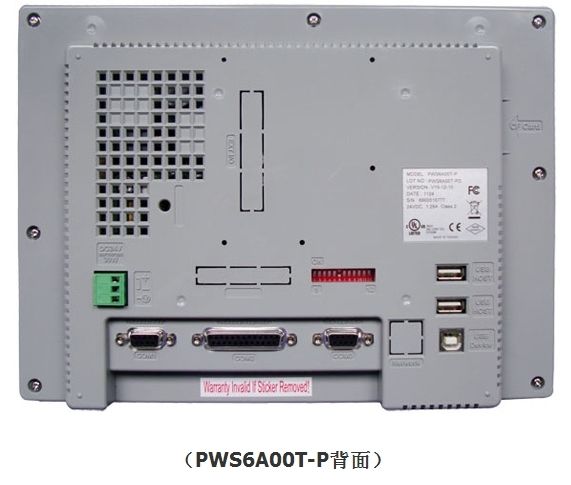

| Item | PWS6A00T-P |
| Display Type | TFT LCD |
| Display Color | 64K colors |
| Display Size | 10.4” (diagonal); display area is 213.2X160.4mm |
| Name of Pixels | 640x480; Number of 8x8 characters displayable 80x60 |
| Back Light | CCFT; Lifetime 50,000 hours @25 ºC |
| Touch Screen | Analog |
| Keypad | 1“Menu” Key and user-defined Function keys(F1….F7) |
| Keypad Pressure& Lifetime | 350±50gf operating force, Lifetime is over 1 million activations |
| Input Power | 24VDC±15%; less than 30W |
| Flash ROM | 8 M bytes |
| RAM | 512 K bytes |
| CPU | 32 bits RISC |
| Battery Backed Memory | 512 K bytes |
| RTC | Yes |
| Data/Recipe | 512K bytes |
| Data Storage(CF card) | Yes |
| COM1 | 9-pin female connector : RS232/RS485 |
| COM2 | 25-pin female connector : RS232/RS422/RS485 |
| COM3 | 9-pin female connector:RS422/RS485 |
| USB Master | 2 Ports |
| USB Device | 1 Port |
| Multi-functional Port | — |
| Ethernet | — |
| Front Panel Seal | IP65 |
| Ambient Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
| Ambient Humidity | 10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing |
| Vibration Endurance | 0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions |
| Shock Endurance | 10G, 11ms three times in each direction of X, Y, and Z axes |
| CE | EN61000-6-4,EN61000-6-2 |
| External Dimensions(mm) | 297.0(W) x 222.0(H) x 52.3(D) |
| Cut-out Dimensions (mm) | 286.0 x 211.0 |
| Weight | 1.9 Kg |
| Colling | Natural cooling |
