Product Description

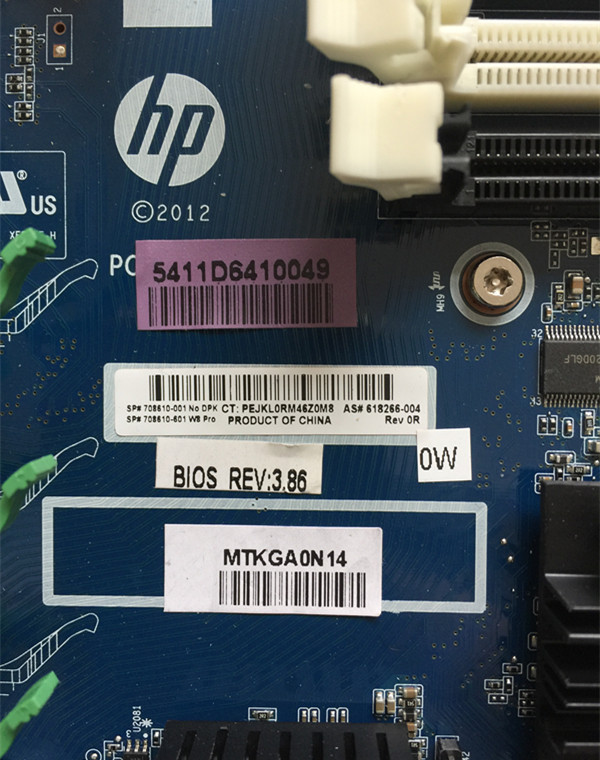

HP Z820 Intel LGA2011 DDR3 Motherboard Desktop Workstation 618266-003 708610-001
Supported CPU's Intel Xeon E5-2600/e5-2600v2 series processors
Socket LGA2011
Chipset Intel C602 Chipset
Memory 16 DIMM slots, up to 512 GB, 8-channel ECC DDR3, up to 1600 MHz,
4 channels per CPU
Drive Controllers Integrated 2-channel SATA 6 Gb/s controller, RAID 0, 1 capable; Integrated 4
channel SATA 3 Gb/s controller, RAID 0, 1, 5, 10 capable; Integrated 8-channel
SAS 6 Gb/s controller, RAID 0, 1, 10 capable;
Expansion Slots 2 PCI Express Gen3 x16; 1 PCI Express Gen3 x16 (Available only with 2nd
CPU); 1 PCI Express Gen3 x16 mechanical/x8 electrical; 1 PCI Express Gen3
x8 mechanical/x4 electrical; 1 PCI Express Gen2 x8 mechanical/x4 electrical; 1
Legacy PCI
Network Dual integrated Intel GbE LAN
Audio Integrated Intel/Realtek HD ALC262 Audio
